Model |

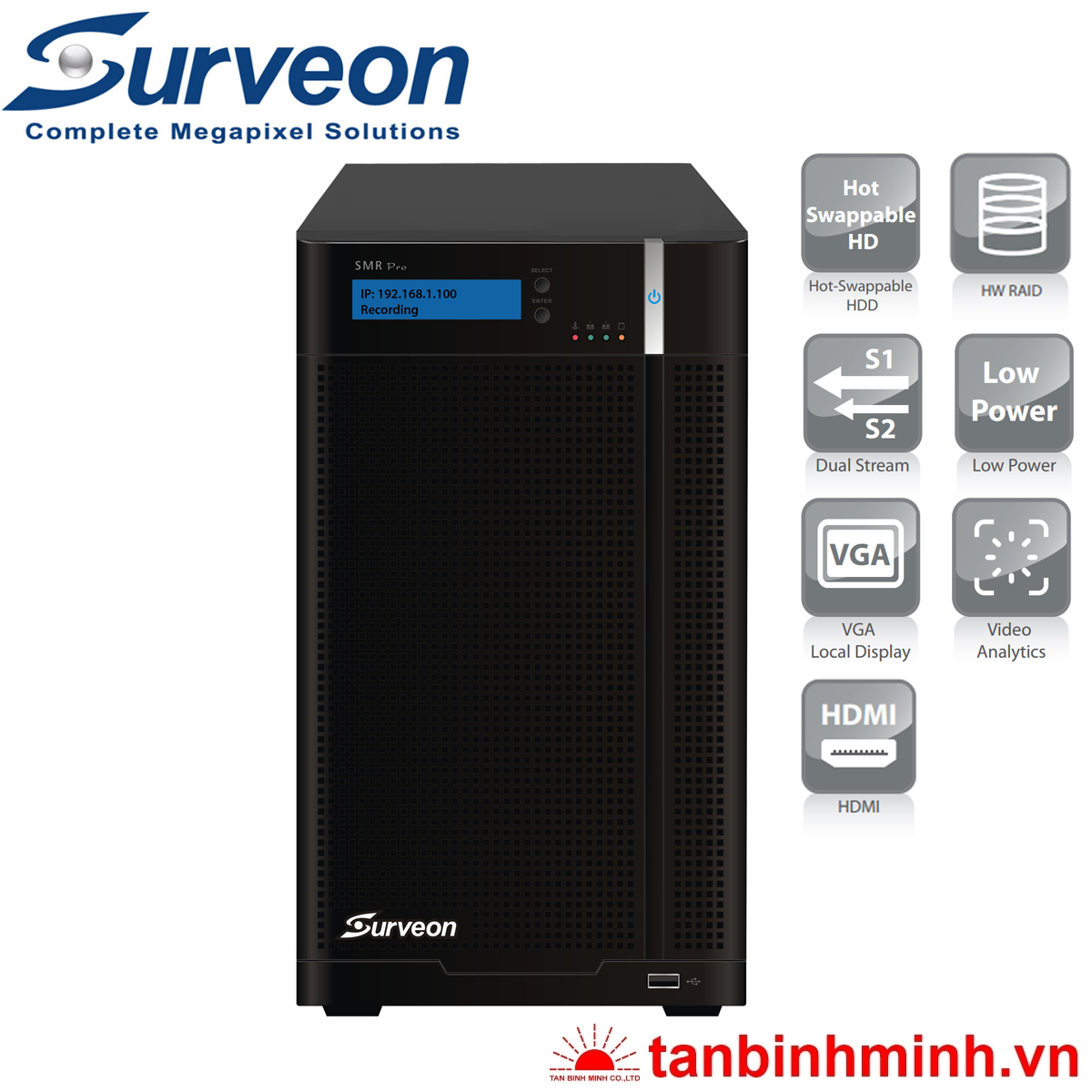

SMR8032 |
System Processor
|
Intel® Core i3 |
System Memory
|
DDR3 4GB |
Chipset
|
Intel® Q67 Express Chipset-Embedded |
Operating System |
2.5" HDD with Windows 7 Embedded System |
Storage |
3.5" SATA HDDs x8; HDD hot swappable with LED status indicator |
I/O Interface |
• VGA: 1x D-Sub / 1xHDMI • RJ-45: 2x Gigabit Ethernet • USB: 6x USB2.0 • COM: x1 |
H/W RAID |
RAID 0, 1, 5, JBOD |
Electrical |
• Input Voltage: 100V~240V, 3.5A • Power Consumption (in operation): 430W |
Operating Environment |
• Humidity: 5% to 80% (non-condensing) • Temperature: 5º to 40ºC |
LED Indicator |
Yes (Fan, Temperature, Power, HDD) |
Dimensions |
310(H) x 175(W) x 380(D) mm |
Weight |
8.9 Kg (w/o Hard Disk) |
Certificate |
BSMI, CB, FCC / CE Class B, UL60959/ IEC 60950, CCC for power only, GOST |
Model |
VMS Specifications |
Live View
|
Real-time network camera discovery Versatile views of various screen divisions HTML and image overlays Multiple views supported View patrolling for single or multiple views Real time vidoe/event alarm display Instant playback Video clip bookmarking |
eMAP
|
Drag-n-drop camera manipulation Directional camera display Hierarchical map structure Real time event alert Instant live video of camera Multiple maps supported |
PTZ
|
Pan, tilt, zoom operations (dependent of camera) Built-in, floating PTZ control panel Preset position (dependent of camera) Scheduled or continous camera patrolling Event-driven camera patrolling On Screen PTZ control |
Multiple Displays |
Up to 8 monitors Supports live view, playback, eMap functions Direct display to secondary monitor(s) |
Investigation |
Search by date, time, camera Search by pre-defined recent time Search by VI event combinations Search over multiple days Search over multiple cameras Video clip bookmarking and commenting Search via built-in VI analyzer Customizable bookmark Intuitive, video thumbnail search results Cue-in, cue-out and repeat Quick playback by video thumbnail 1/8, 1/4, 1/2, 1x, 2x, 4x, 8x play, pause, stop AVI-formated video clip export |
Instant Playback |
Supported in video alarm, event alarm, view functions Pre-defined playback durations Video clip bookmarking |
Video Intelligence |
General motion detection Missing object detection Foreign object detection Intrusion detection Forbidden area detection Tampering detection Virtual fence Object counting |
Remote Management |
Full functional operation & management via standalone VMS Client |
Remote Client |
Web Client iPhone Client |
3rd Party IPCAM |
ACTi, Arecont Vision, Asoni, AVTECH, AXIS, Bosch, Dahua, HIKVISION, IQinVision, Lilin, MOBOTIX, Panasonic,SAMSUNG, SONY, VIVOTEK |
General & Misc |
Video codec: H.264, MPEG4, MJPEG Image enhancement Video privacy mask Digital zoom in, zoom out Log viewer Windows lockup Client auto login Digital I/O management Automatic storage recycling Client-server architecture Guaranteed performance of long period recording Customizable appearance of Surveon logo Configurable video retention period Digital watermark proofing Language supported: English, French, German, Portuguese, Spanish, Simple Chinese, Traditional Chinese, Italian, Japanese, Russian, Slovak, Czech, Dutch and Polish Support DDNS Function Support CH Products USB joystick Support etherent I/O device* Support NTP Server synchronized* |
