CHI TIẾT SẢN PHẨM

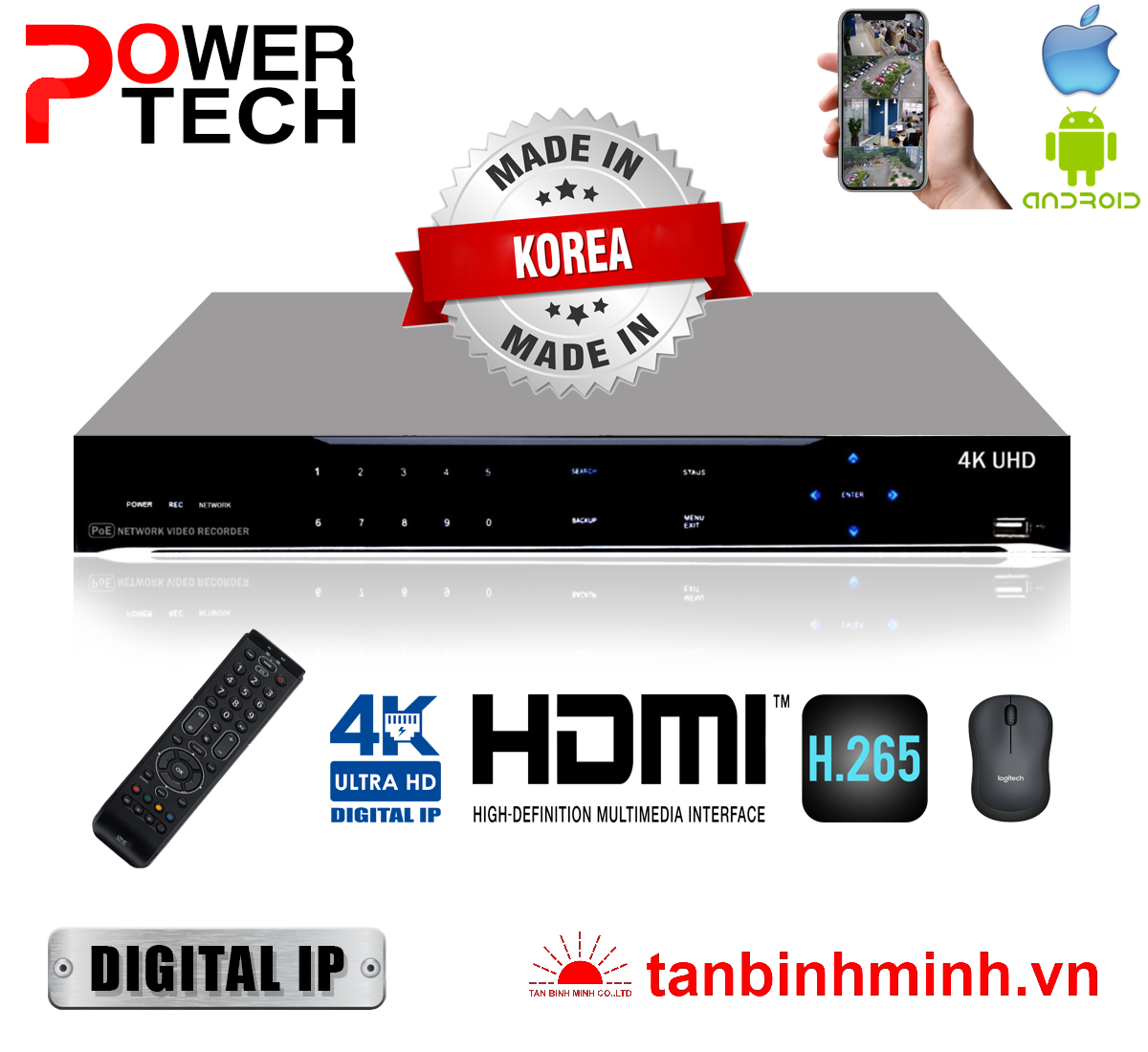

Đầu ghi hình IP 08 kênh 4K PoE IST08W
NVR 8 KÊNH
- MS : IST08W
- Bảo hành : 12 Tháng
- Kho hàng : Còn hàng
- Hãng sản xuất : POWERTECH
- Xuất xứ : Korea
- Seri sản phẩm : Updating...
Số lượng mua
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
| Model | i-Standard Series | ||||
|---|---|---|---|---|---|
| i-Standard 08 | |||||
| Video | Camera input | 8 POE | |||
| IP Camera | Spec | ONVIF 1812, RTSP, H.264, H.265, dual stream | |||
| Resolution | upto 8M | ||||
| Num | 8 | ||||
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) |
||||
| Audio | Audio input | 1 RCA | |||
| Output | 1 RCA | ||||
| Sensor In | 8 (NC, NO selectable) | ||||
| Alarm out | 1 relay | ||||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, 3840x2160(UHD) | ||||
| Split screen | 1,4,6,8,9 | ||||
| Main IPC |
CODEC | H.264, H.265 | |||
| Resolution (Pixel) / fps | main: upto 8MP @ 30 sub: upto 960x540 |
||||
| Total Bitrate | 200Mbps | ||||
| Channel Bitrate | 25 Mbps | ||||
| Playback | Display | 1,4,6,8,9 | |||
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail, Bookmark | ||||
| Fast/Slow speed | Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause | ||||
| Network | Network Interface | Gigabit Ethernet | |||
| Application | Windows 7 / 8 / 10 (PC Client system& IE)/MAC | ||||
| Web Browser | Internet Explorer, Safari | ||||
| Smart phone App | Android, iPhone for live and search | ||||
| Backup | Backup device | External HDD and CD/DVD-RW, Network, Thumb Drive | |||
| The number of HDD | 2 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 10TB or more) | ||||
| Function | · Full GUI with alpha blending | ||||
| · Individual setting of resolution, frame rates and picture quality | |||||
| · Instant Replay | |||||
| · Digital Zoom | |||||
| · Mouse Control | |||||
| · Weekly scheduler with holiday by 10 minutes setting | |||||
| · Covert, Disable and Private function of cameras | |||||
| · Motion Detection with 576 area setting | |||||
| · Relay alarm output | |||||
| · PTZ control by RS-485 | |||||
| · Daylight Saving Time and Network Time Setting | |||||
| · Multi User Authority | |||||
| · Deinterlacer upon live and playback | |||||
| · Multi languages with full graphic | |||||
| · Individual Network port setting | |||||
| · Auto Deletion | |||||
| · Import and Export the configuration | |||||
| · Interactive setup via network | |||||
| · POS Interface | |||||
| · Mirroring | |||||
| Others | Power Consumption | 96W (48V) | |||
| Operating Temperature | 0~40°C(32~104°F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 380(W)×340(D)×50(H) mm | ||||
