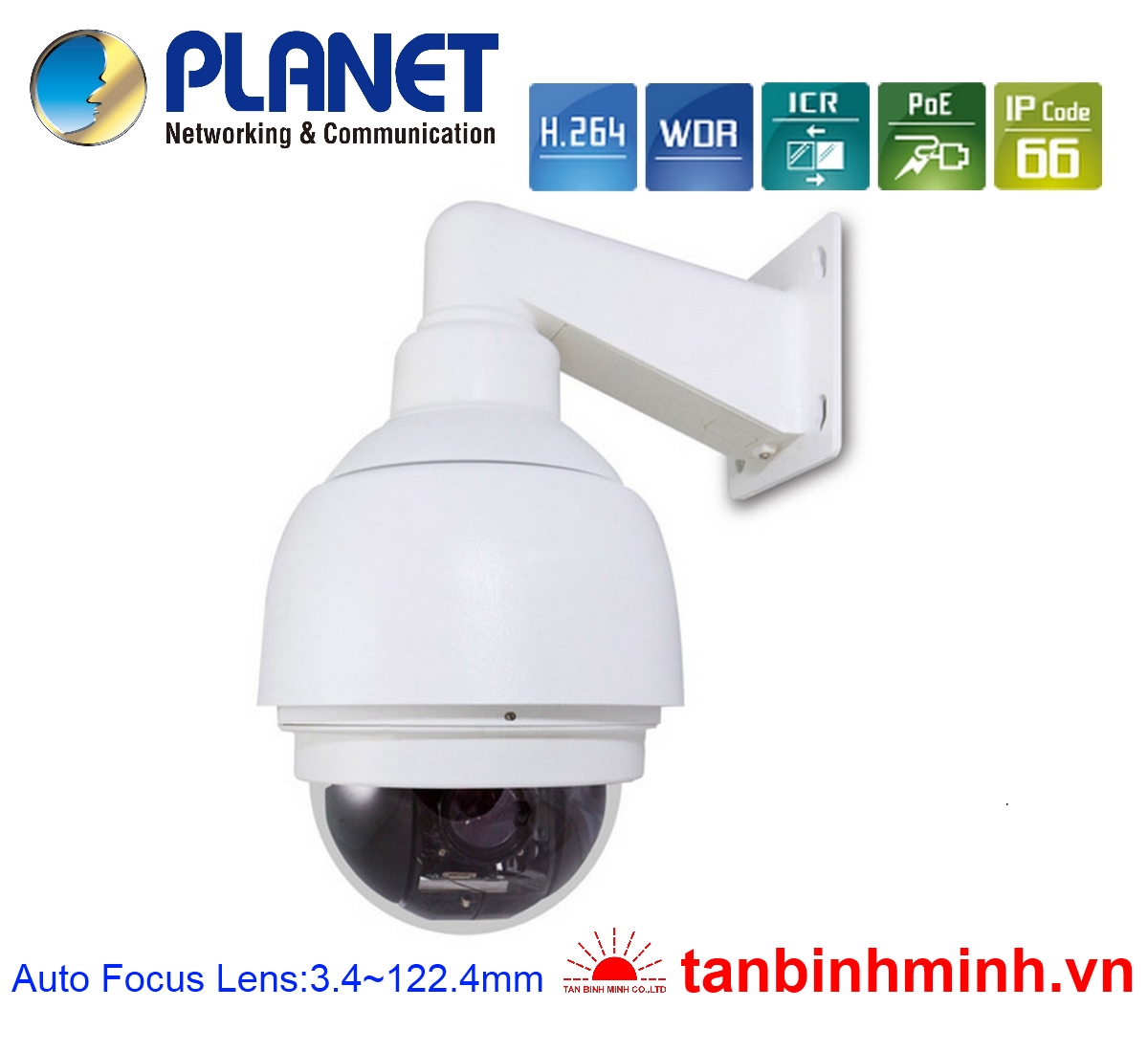

Camera IP Planet ICA-H652

Model

ICA-H652

Camera

Image device

1/4" Sony CCD sensor

Lens

f= 3.4 ~ 122.4 mm, auto/manual-iris/focus
Mechanical IR cut filter
Angle of view (horizontal x vertical):
H: 57.8~ 1.7 degrees
V: 43.4 ~ 1.28 degrees

Min Illumination

0.001 Lux (B/W) / 0.01 Lux (color)

Effective Pixels

D1: NTSC(720 x 480 pixel) / PAL(720 x 576 pixel)

Pan/Tilt/Zoom

Optical Zoom

36x

Digital Zoom

1~12x variable

Pan Degree

0 ~ 360 degrees continuous panning

Tilt Degree

-10 ~ 190 degrees

Manual Speed

0.5 ~ 90 degrees

Preset Point

256

Preset Accuracy

0.225 degrees

Preset Speed

5~400 degrees

Sequence

8

Auto Pan

4

Camera Cruise

8

Privacy Mask

16 (w/motion detection window)
20 (w/o motion detection window)

Proportional Pan & Tilt

On/Off (Pan and tilt speed proportional to zoom ratio)

Resume after Power loss

Yes

Home Function

Preset, Sequence, Auto Pan, Cruise

Auto Flip

Digital / Mechanical / Off

Digital Slow Shutter

On / Off

Video

Video Compression

H.264 / M-JPEG

Video Resolution

D1: NTSC 720 x 480 / PAL 720 x 576
CIF: NTSC 352 x 240 / PAL 352 x 288

Horizontal Resolution

650 TVL

Frame Rate

Dual D1 @ 60fps

Image Setting

Auto electronic shutter: 1/1 ~ 1/10k sec
Auto white balance: auto/ indoor/ outdoor/ ATW
AGC: auto / manual
3D digital noise reduction
WDR
Color, sharpness
Mirror/flip
Privacy masks
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG /H.264)

Audio

Audio Streaming

Two-way audio

Audio Compression

G.711 64kbps, G.726 32kbps, ADPCM

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3at PoE Plus

Protocol

IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF

Security

HTTPS / IP filter / IEEE 802.1x

Users

8 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF compliant

Alarm Triggers

Input
4 sets / 5V 10kΩ pull up

Output
2 set / relay output, max. 2A, DC 30V / 0.5A, AC 125V

Alarm Reaction

Preset / Sequence / Auto Pan / Cruise

Event Notification

HTTP / FTP / SMTP

Network Failure Detection

Yes

Environment

Power Requirements

AC24V ± 10% (system & heater)
IEEE 802.3at High Power over Ethernet (system & heater)

Power Consumption

50 W (with heater)

Operating Temperature

-40 ~ 50 degrees C (-40 ~ 122 degrees F)

Operating Humidity

10 ~ 90% (non-condensing)

Weight (include LENS)

2.3 kg (5.11 lb)

Dimensions (Φx H)

191.9 x 382.1 mm (7.5 x 11.1 in.) w/ Sunshield

Protection Class

IP66 outdoor classification, built-in fan and heater

Heater

-7 degrees C on / 3 degrees C off

Emission

CE / FCC / RoHS

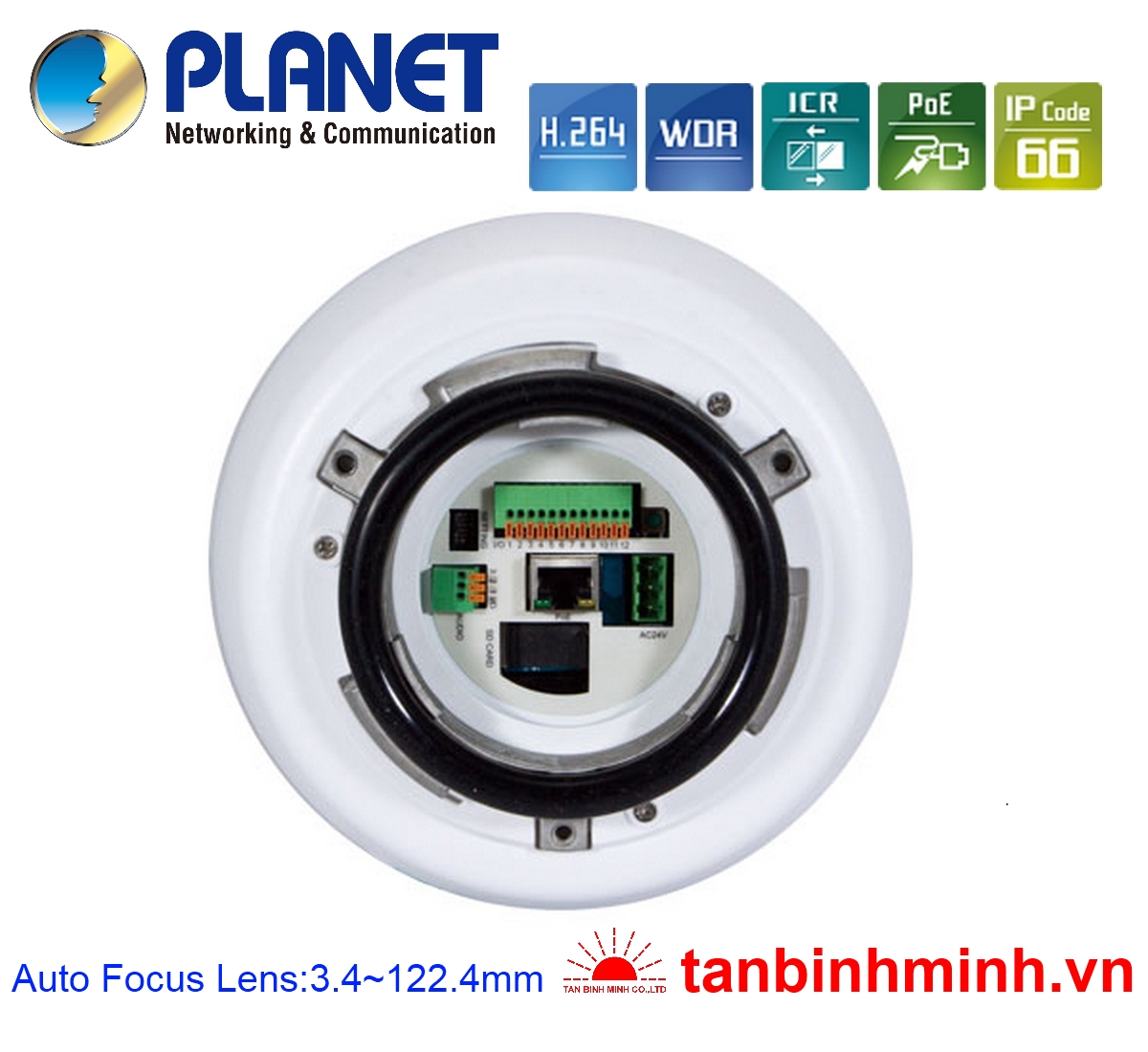

Connectors

10/100Mbps Ethernet, RJ-45
AC power connector
Terminal block for 4 alarm input and 2 output
External MIC input / Audio out
Micro SDHC card (max 32GB, Class 10)
Factory default reset button
